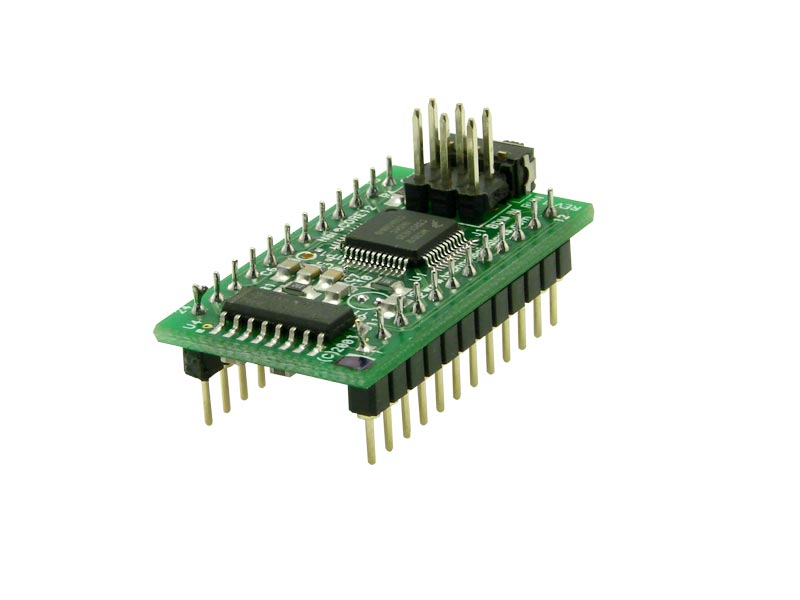

NanoCore12C32 MCU Module, DIP24, round pins

NanoCore12C32 MCU Module, DIP24, round pins

NC12C32
Regular price
$49.00
Sale price
$49.00
Regular price
Sold out
Unit price
per

NanoCore12TM is a low-cost platform that brings the advanced features of the 9S12C microcontroller family within easy reach of engineers, students, and hobbyists.  NanoCore12 is the only complete family of DIP modules based on a high-speed CISC device. The S12 instruction set includes powerful DSP-like instructions, 16-bit arithmetic, and the architecture implements memory-to-memory moves, and many powerful addressing modes.

Product Details

  • based on the 9S12C32 MCU (48-pin LQFP version)
  • includes 8 Mhz crystal
  • 24 MHz bus speed (via PLL)
  • local 5 Volt low-dropout 100 mA regulator
  • includes RS232 transceiver circuit
  • has on-chip Serial Monitor
  • supports standalone operation
  • 32K Bytes Flash
  • 2K Bytes Ram
  • 24-pin DIP form-factor
  • gold-plated machined round pins
  • pinout virtually identical to BASICStamp2®

Ease-of-Use Features:

  • supports programming in C, BASIC, Forth, assembler, etc.
  • no special Flash programming voltage or switch required
  • fast in-circuit programming
  • small footprint on-chip bootloader/monitor and free uBug12 multi-platform GUI for quick loading/debugging of user programs on a Windows platform
  • Run/Load switch for choice of Standalone or Monitor operation following reset
  • compatible with virtually all 9S12 development tools on the market

Flash-based code development using on-chip debug/monitor

With a 2K Flash-resident debug/monitor program, you'll be able to load your program into the remaining 30K Flash via the serial port using the CodeWarrior or uBug12 user interface for Windows. To use the monitor for debugging or code-loading, just set the switch to LOAD. To run your standalone program thereafter, leave the switch at RUN. Your code runs from Flash, and interrupts are supported (via Flash-based pseudo vectors, since the monitor resides in the vector space of the MCU). A program you load into Flash this way will run every time you apply power or reset the board in Run Mode.

Flash-based code development using a BDM pod

If you want to take advantage of a more advanced development tool (such as our USBDMLT), the entire 32K Flash can be used, because the Flash-resident bootloader is no longer needed (therefore pseudo-vectors aren't required either). You'll also need to use this method if you are using a non-Windows development platform.

Detailed features:

  • implements PLL loop filter circuit, supporting up to 48MHz operation (24 MHz bus speed)
  • capable of 3-Volt operation (using Vin pin)
  • standard 6-pin BDM connector for full debugging capabilities (with an optional BDM pod)
  • ECLK signal is user-accessible (via pad on circuit board)
  • access to eight 10-bit analog input or digital I/O port lines (Port AD)
  • access to eight digital I/O port lines (Port T)
  • up to five PWM timer channels (PT0 - PT4)
  • up to eight Input Capture/Output Compare pins (Port T)
  • internal programmable pullup and pulldown resistors on most pins
  • user access to MCU reset signal
  • sturdy gold-plated machined pins plug into standard dual-leaf DIP sockets or solderless breadboard

®BASICStamp is a registered trademark of Parallax Inc.
