XBee Adapter, 20-pin
XBee Adapter, 20-pin
XBee Adapter, 20-pin
  • Load image into Gallery viewer, XBee Adapter, 20-pin
  • Load image into Gallery viewer, XBee Adapter, 20-pin
  • Load image into Gallery viewer, XBee Adapter, 20-pin

XBee Adapter, 20-pin

-NC
Regular price
$5.00
Sale price
$5.00
Regular price
$7.50
Sold out
Unit price
per
Shipping calculated at checkout.

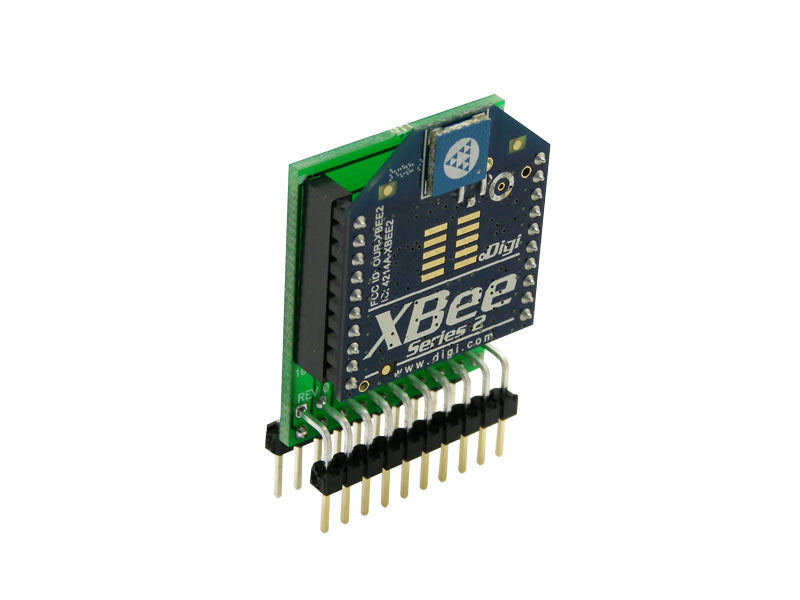

XBee modules are low-cost popular modules for wireless networking, but the 2mm pin-spacing makes it difficult to work with them. ADXB is designed to solve this problem. This product follows our traditional vertical design approach for breadboard adapters, leaving the breadboard tie-points readily accessible. The standard connector style is "SB", which has a 20-pin narrow DIP footprint. However, it can be ordered with some of our other standard connector options instead, if you prefer.
  • when you select the SB connector option:

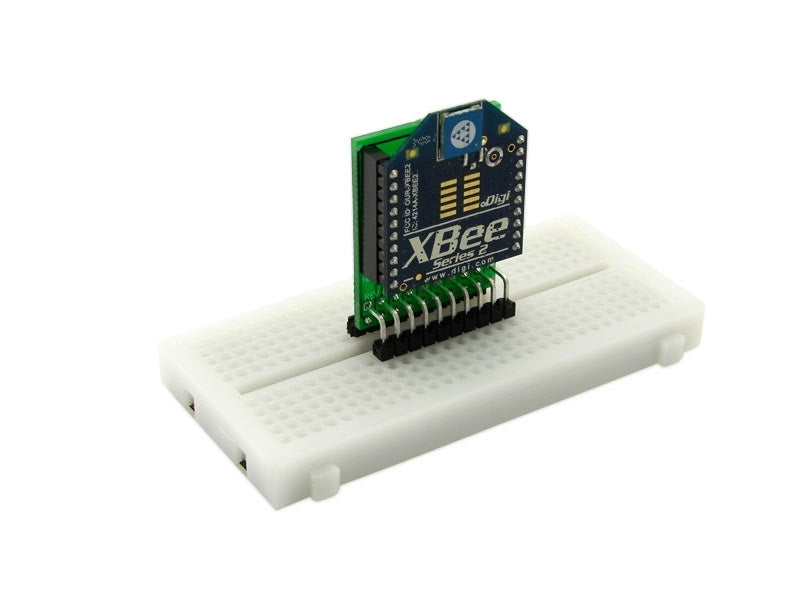

    • you can use an XBee module as easily as a DIP in your breadboard
    • pin rows are spaced 0.3" apart to plug into standard solderless breadboard
    • takes minimum real estate on breadboard
    • gives maximum access to tie-points
  • perfect for students, technicians, engineers, and hobbyists
  • compact vertical design
  • gold-plated 0.025" square-pin right-angle header terminations

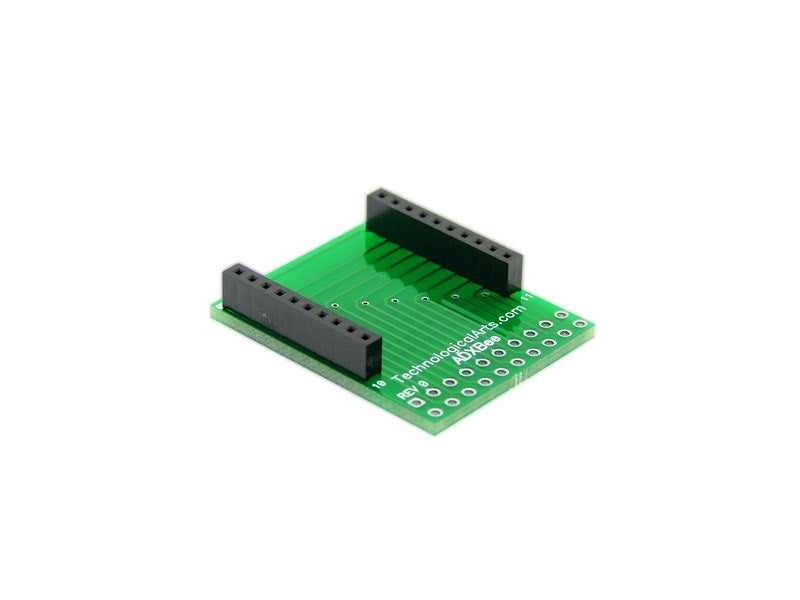

  • 2mm receptacle strips accept standard or Pro XBee module
  • quality 2-layer FR-4 board
  • same pin-numbering scheme as DIP package (pin numbers ascending counterclockwise from lower left corner)
  • when you select M, M1, RA, or RA1 connector options, it's compatible with a 20-conductor ribbon cable, so you can orient the XBee module for best reception
  • select the RA option if you want to use it with EsduinoXtreme (you'll need to solder a mating HDR20-FRA connector onto your EsduinoXtreme)

Connector Options

Connector styles are similar to those available on MicroStamp11.  Not all styles are offered for ADXB.  Click here to see what they look like.
