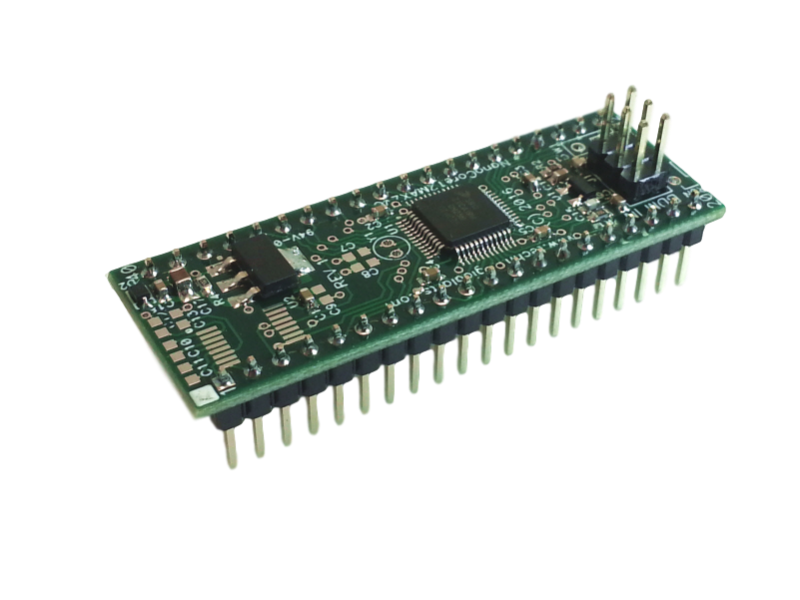

NanoCore12MAXZVC DIP module, TTL

NanoCore12MAXZVC DIP module, TTL

NC12MAXZVCT
Regular price
$35.00
Sale price
$35.00
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

Long lead time on this product! (April 2024)

Overview

Designed primarily for automotive, robotics, mechatronics, and industrial applications, this module implements a fully-functional 16-bit microcontroller circuit in a convenient easy-to-use DIP format. Based on the advanced 16-bit Freescale/NXP S12ZVCA19 microcontroller, it offers unprecedented power and flexibility for a variety of applications, at a very attractive price. Suitable for educational and development applications.
  The S12ZVC microcontroller integrates a sophisticated S12Z core together with a 12 V to 5 V voltage regulator and a CAN physical layer for automotive and industrial applications such as sensors, actuators, switch panels or other user interfaces.

S12ZVCA19 MCU Features:
• powerful S12Z core with linear addressing
• 192K ECC Flash memory
• 2K ECC EEPROM
• 12K ECC RAM
• high-speed CAN physical layer
• 2 high-voltage inputs
• 4-channel open-drain GPIO
• SCI, SPI, IIC
• 4 + 4 16-bit timers (20ns resolution)
• 4 + 3 16-bit PWM channels (20 ns resolution)
• 10 12-bit ADC channels
• 8-bit DAC
• 2 Analog Compare (ACMP) with rail-to-rail inputs
• internal 1 Mhz oscillator
• up to 32Mhz bus speed via PLL

Module Features:
• high-reliability S12ZVCA19 microcontroller
• 5-Volt operation
• compatible with automotive power bus
• standard 6-pin BDM connector
• compatible with USBDMLT low-cost BDM pod
• supported by CodeWarrior MCU v10.6 and higher
• integrated high speed CAN transceiver
• TTL levels on SCI1 (for RS232 version see NC12MAXZVCR)
• optional crystal (user-installed)
• 40-pin standard NanoCore12MAX wide DIP format
• standard 0.025” (0.65mm) square pins
• quality 4-layer board
• RoHS-compliant
• industrial temperature range (-40C to +85C)

Resources

Documentation and Support Library
Using USBDM with CodeWarrior 10.6 and higher
S12ZVC Fact Sheet
S12ZVC-family Reference Manual and Data Sheet
S12Z CPU Reference Manual
NXP web page

Special Edition: CodeWarrior for Microcontrollers 10.7 (Eclipse)
