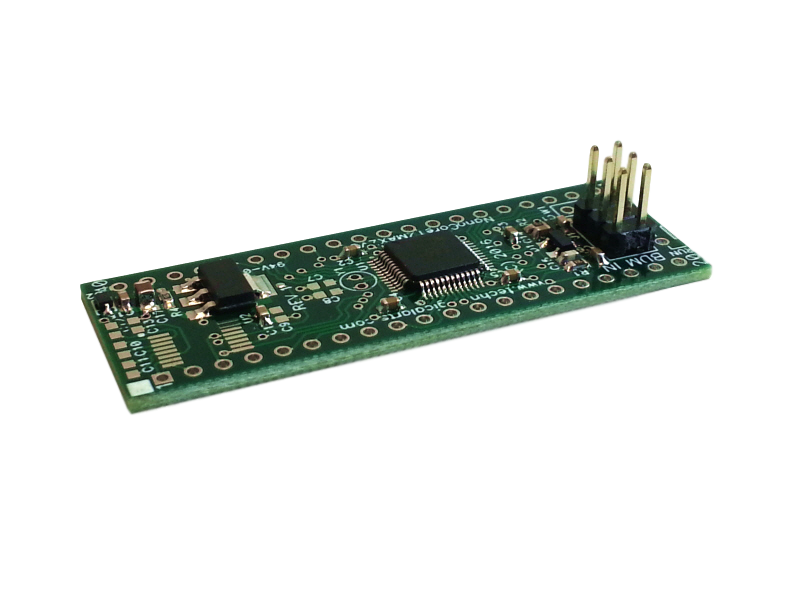

NanoCore12MAXZVC DIP module, TTL, no pins

NanoCore12MAXZVC DIP module, TTL, no pins

Regular price
$32.00
Sale price
$32.00
Regular price
Sold out
Unit price
per

Overview

Designed primarily for automotive, robotics, mechatronics, and industrial applications, this module implements a fully-functional 16-bit microcontroller circuit in a convenient easy-to-use DIP format. Based on the advanced 16-bit Freescale/NXP S12ZVCA19 microcontroller, it offers unprecedented power and flexibility for a variety of applications, at a very attractive price. Suitable for educational and development applications.

The S12ZVC microcontroller integrates a sophisticated S12Z core together with a 12 V to 5 V voltage regulator and a CAN physical layer for automotive and industrial applications such as sensors, actuators, switch panels or other user interfaces.

Product Details

S12ZVCA19 MCU Features:
• powerful S12Z core with linear addressing
• 192K ECC Flash memory
• 2K ECC EEPROM
• 12K ECC RAM
• high-speed CAN physical layer
• 2 high-voltage inputs
• 4-channel open-drain GPIO
• SCI, SPI, IIC
• 4 + 4 16-bit timers (20ns resolution)
• 4 + 3 16-bit PWM channels (20 ns resolution)
• 10 12-bit ADC channels
• 8-bit DAC
• 2 Analog Compare (ACMP) with rail-to-rail inputs
• internal 1 Mhz oscillator
• up to 32Mhz bus speed via PLL

Module Features:
• high-reliability S12ZVCA19 microcontroller
• 5-Volt operation
• compatible with automotive power bus
• standard 6-pin BDM connector
• compatible with USBDMLT low-cost BDM pod
• supported by CodeWarrior MCU v10.6 and higher
• integrated high speed CAN transceiver
• TTL levels on SCI1 (for RS232 version see NC12MAXZVCR)
• optional crystal (user-installed)
• 40-pin standard NanoCore12MAX wide DIP format
• no header pins included--  solder wires to the pads or use your own headers
• quality 4-layer board
• RoHS-compliant
• industrial temperature range (-40C to +85C)
• volume pricing available for 25+ units

Resources

Documentation and Support Library

Using USBDM with CodeWarrior 10.6 and higher
S12ZVC Fact Sheet
S12ZVC-family Reference Manual and Data Sheet
S12Z CPU Reference Manual
Freescale/NXP web page

Special Edition: CodeWarrior for Microcontrollers 10.7 (Eclipse)
