Adapt812 Module

Adapt812 Module

Regular price
Sale price
Regular price
Sold out
Unit price
Shipping calculated at checkout.

Quantity in stock: 2

Product Info

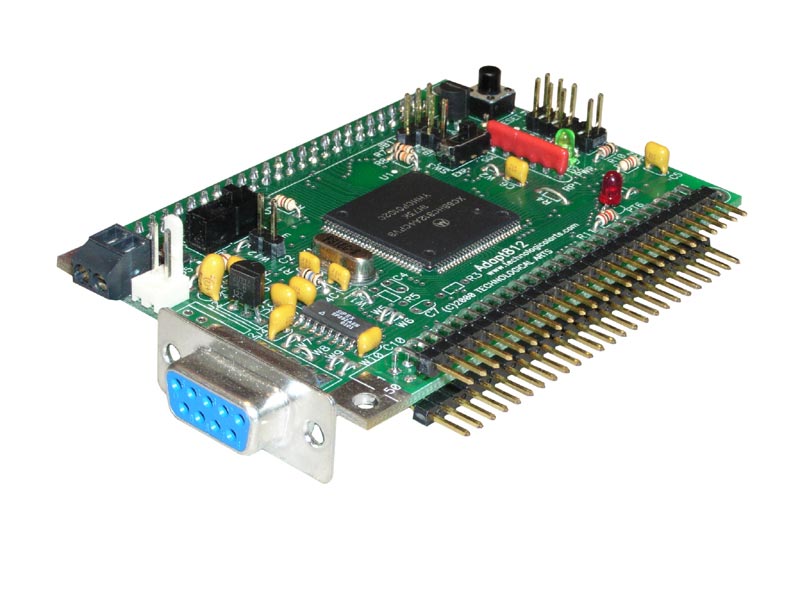

  • compact (2.25" x 3.25") modular implementation of the legacy MC812A4 microcontroller
  • 90 I/O lines, all programmable as input or output, many with input capture, output compare, and "key wake-up" interrupt capability
  • 8-channel, 8-bit analog-to-digital converter
  • 4K EEPROM and 1K RAM on-chip
  • includes both RS232 (DB9) and RS485 (2-screw terminal block) interfaces, usable simultaneously
  • versatile I/O connector design for use with solderless breadboards, prototyping cards, or embedding into your design
  • primary 50-pin connector for dedicated I/O
  • secondary 50-pin connector for additional I/O or expanded mode memory bus
  • memory expandable off-board up to 4MB program and 1MB data memory
  • Background Debug Mode (BDM) fully supported for debugging your code
  • 4-pin and universal 6-pin/10-pin BDM connectors support BDM pods from multiple vendors
  • program in C, BASIC, or assembler
  • 256-byte firmware bootloader provides convenient downloading via RS232 serial port (BDM pod not required)
  • fully compatible with third-party assemblers, compilers, and BDM pods

What you get:

  • this product ships with a mating power wire assembly
  • data sheets, manuals, and all other resources for this product can be found in the Resources Library

Before you order...
Most of our standard connector options are available for this board. The product photo above shows "SB" style on H1 and "M" style on H2. Please make your choice of connectors before adding this item to your shopping cart. Otherwise, the board will be shipped with the default option (i.e. no connectors on H1 and H2)

Click here to view available Connector Options for headers H1 and H2
