Adapt9S12D is a compact, modular implementation of NXP's 9S12D family of microcontroller chips. Implemented in an "AdaptS12" form factor, the Full configuration includes all necessary support circuitry for the MCU, as well as a 5-Volt regulator, RS232, RS485, and two CAN transceivers on-board.

MCU Overview:

MC9S12DP512 is a 16-bit device made up of standard on-chip peripherals including a 16-bit central processing unit (HCS12 CPU), 512K bytes of Flash EEPROM, 14K bytes of RAM, 4K bytes of EEPROM, 2 asynchronous serial communications interfaces (SCI), three serial peripheral interfaces (SPI), an 8 channel IC/OC enhanced capture timer, two 8-channel, 10-bit analog-to-digital converters (ADC), an 8-channel pulse-width modulator (PWM), 29 discrete digital I/O channels (Port A, Port B, Port K and Port E), 20 discrete digital I/O lines with interrupt and wakeup capability, five CAN 2.0 A, B software compatible modules (MSCAN12), and an I2C bus.

Module Features:

  • surface-mount MC9S12DP512 112-pin MCU
  • 2.30" x 3.25" AdaptS12 form-factor
  • two 50-pin connectors bring out all I/O pins of the MCU
  • all I/O pins on a 0.1" grid for easy interfacing to standard perfboard
  • versatile connector design for use with solderless breadboards, prototyping cards, or embedding into your design
  • RS232 transceivers provided for both SCI channels
  • RS485 transceiver provided for second SCI channel (jumper-selectable)
  • two physical-layer high-speed CAN transceivers (PCA82C250 or equivalent)
  • 16 MHz crystal, but internal bus can run up to 24MHz (using on-chip PLL)
  • accommodates optional user-supplied oscillator
  • Background Debug Mode (BDM) fully supported for loading and debugging user code (requires BDM pod)
  • universal 6-pin/10-pin BDM connectors support BDM pods from multiple vendors
  • program in C, BASIC, Forth, assembler, etc.
  • no special Flash programming voltage or switch required
  • fast in-circuit programming
  • on-chip bootloader/monitor (D-Bug12) for quick loading of user programs
  • 500mA, automotive grade, low-dropout 5V regulator on-board (underneath)
  • includes low-voltage inhibit reset circuit + reset button
  • accommodates optional precision voltage reference chip for analog-to-digital converters

What's included:

  • assembled, tested module, pre-programmed with D-Bug12
  • red and black power connector cable assembly (#PCJ1-8)
  • data sheets, manuals, and all other resources for this product can be found in the Resource Library
If you require mating connectors, browse Connectors in the Components category.

Before you order...

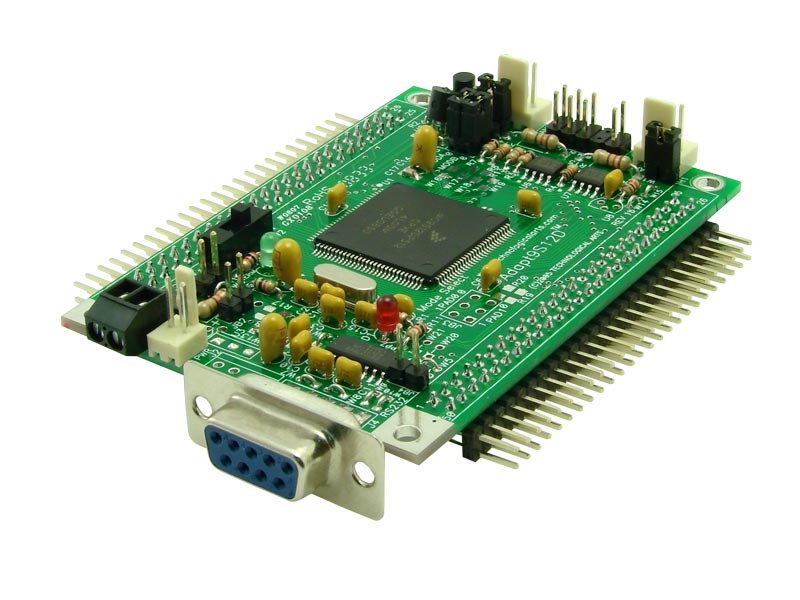

Most standard connector options are available for this board (although not all combinations). The product photo above shows "RA1" connector on both H1 and H2. Please make your choice of connectors before adding this item to your shopping cart. Otherwise, the board will be shipped with the default option (no connectors on H1 and H2).

Programmer/Debugger:

As an alternative to the resident D-Bug12 Debugger/Monitor firmware, an external BDM pod can be used. We offer both D-Bug12-based pods and a CodeWarrior-compatible USBDM pod, available in the Debugging Tools category, above.
