Breakout Baseplate for Adapt9S12 dual-header MCU Modules

DISCOBOB-ADAPT
Regular price
$19.00
Sale price
$19.00
Regular price
Sold out
Unit price
per

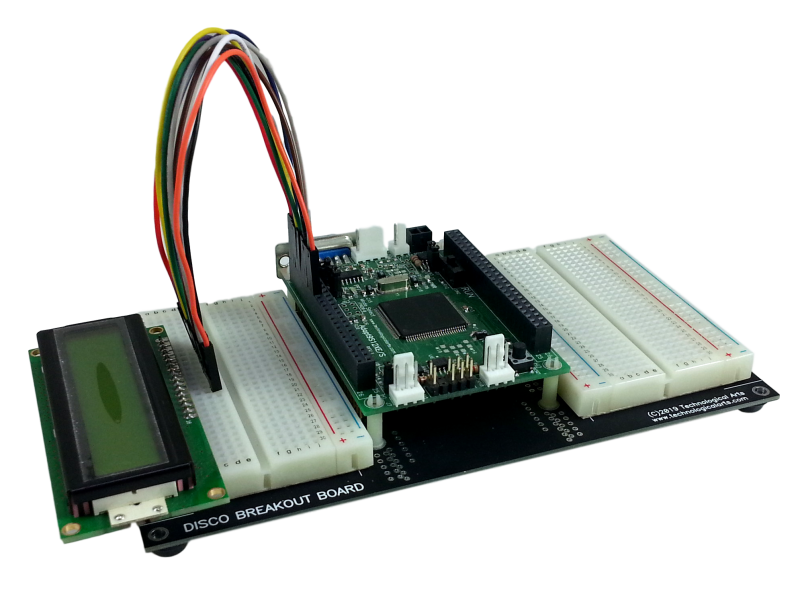

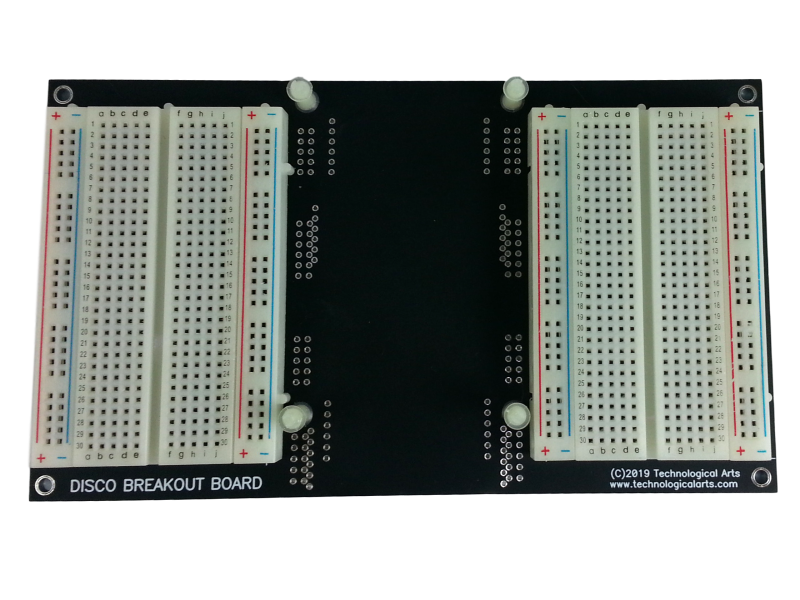

A convenient base for experimenting and designing with Adapt9S12 form-factor MCU modules.  This baseplate comes with snap-in standoffs to mount the MCU module, two solderless breadboard sections (one adjacent to each 50-pin I/O connector) to construct interface circuits, and non-slip rubber feet for using on a workbench or tabletop.  To use standard male-to-male pluggable breadboard jumper wires, your MCU module should have "F" style connector option for H1 and H2.  If you have "M1" style connectors, you would need to use male-to-female breadboard jumpers. MCU module and jumper wires not included.
