Product Info

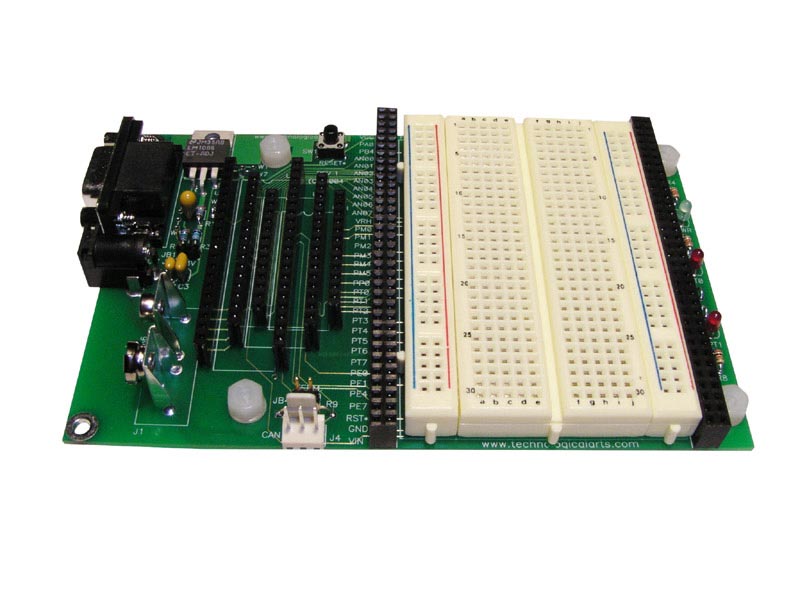

- convenient platform for programming and experimenting with NanoCore12 MCU modules
- generous solderless breadboard section for easy assembly and disassembly of interface circuits
- includes power distribution strips, for easier circuit construction
- 9-pin D-sub socket for serial interface to user personal computer
- dual-voltage regulator configuration to permit user-selectable 3.3V and 5V operation
- low-dropout, low-power regulator, with thermal shutdown and reverse-polarity protection
- polarized power connector to prevent reverse polarity application by user
- connection clips for optional 9V battery operation
- oscilloscope grounding point
- high-efficiency green LED power indicator
- reset button
- socket strips, for easy and safe removal and insertion of MCU module
- multiple socket strips provided, to accommodate entire NanoCore12 family (24-, 32-, and 40-pin modules)
- dual high-efficiency red user LEDs (PT0, PT1)
- each MCU signal brought out to two connection points adjacent to breadboard via dual 68-pin receptacles
- 3-pin CAN connector for use with 40-pin MCU Module (NC12MAX)
- supplied with rubber feet (nylon standoffs optional)
- same mounting holes as Parallax Board of Education®, for easy use with BOE Bot, Rogue Blue, etc.
- requires 6 to 15VDC input (minimum 40 mA)
- MCU module not included (order separately)
